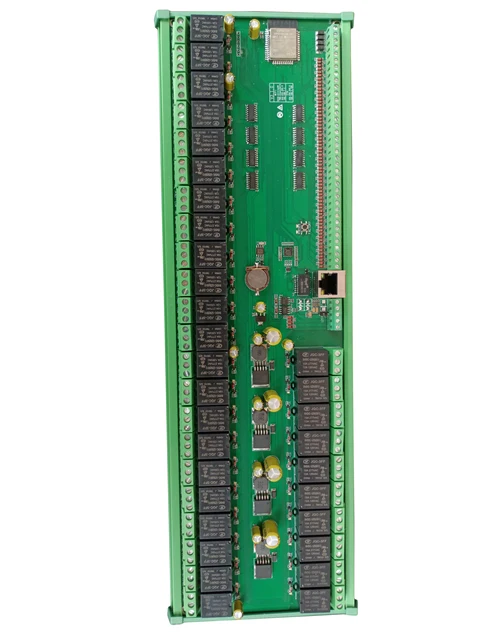

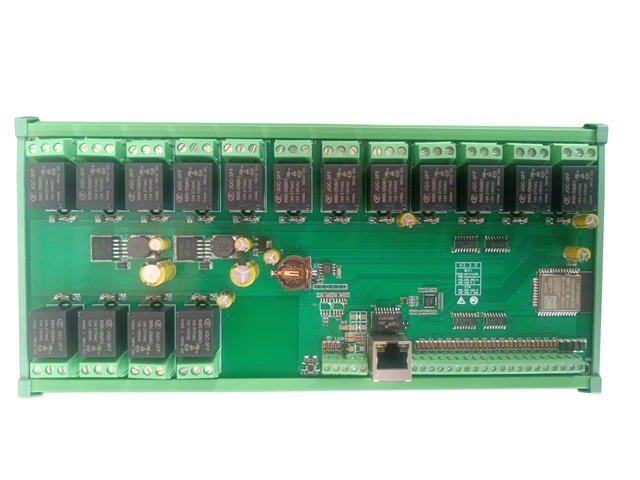

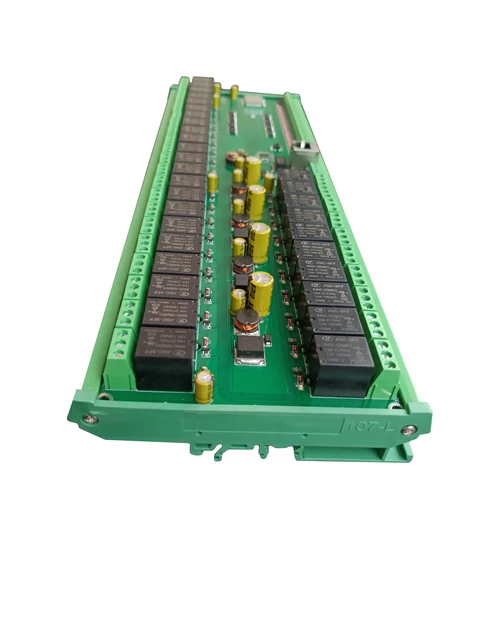

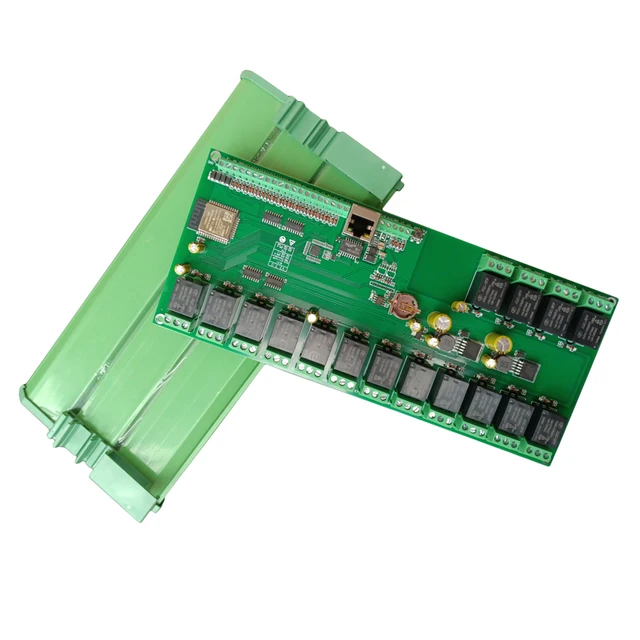

Ethernet Relay Board with Ethernet, WIFI & RS485 Support

From R2379.83
  • Color:

  • Ships From:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    Introducing the Ethernet Relay Board with versatile support for Ethernet, WIFI, and RS485. This smart switch offers a range of functionalities for seamless home automation integration.

    Relay board function instruction as below, any questions, please contact us

    ETHWiFi means support Ethernet and WIFI

    ETHWiFi RS485 means support Ethernet, WIFI and RS485

    ETHWiFi CAN means support Ethernet, WIFI and CAN bus

    Support Customized and develop by our company

    User manual and programming manual SDK:

    http://www.dingtian-tech.com/sdk/relay_sdk.zip

    Notes: it is finished relay board, don’t support flash your own firmware. If you want to flash firmware, please contact us

    Specification

    Parameter

    DT-R002

    DT-R004

    DT-R008

    DT-R016

    DT-R032


    Interface

    RJ45, WiFi, RS485, CAN, Wiegand(optional)

    Size(Relay Board)

    87*68mm

    91.6*86.4mm

    122*87mm

    250*107mm

    370*107mm

    Size(DIN35 Case)

    90*90*40mm

    115*90*40mm

    145*90*40mm

    252*123*43mm

    373*123*43mm

    Power Supply

    12V/24VDC, 5V/24VAC

    Power Adapter

    12VDC/1.5A

    12VDC/1.5A

    12VDC/1.5A

    12VDC/2A

    12VDC/3A

    Power Consumption

    2W

    3W

    5W

    9W

    16W

    Working Temperature

    -20~75℃

    Storage Temperature

    -40~80℃

    Protocol

    MQTT, Modbus-RTU/TCP/UDP/ASCII, TCP, UDP, HTTP GET CGI, CoAP

    Quantity Relays

    2DO

    4DO

    8DO

    16DO

    32DO

    Quantity Digital Input

    2DI

    4DI

    8DI

    16DI

    32DI

    Quantity Wiegand

    1(optional)

    1(optional)

    0

    1

    1

    RTC

    NO

    NO

    NO

    Optional

    Optional

    Home Automation

    Domoticz, Home Assistant, openHAB, Red-Node

    Function

    IP Watchdog, Task, NTP Client, Input mutual control, OTA Upgrade

    Ethernet IP

    192.168.1.100

    Web User/PWD

    admin/admin

    WiFi AP IP

    192.168.7.1

    WiFi AP SSID/PWD

    dtrelaySN/dtpassword

    WiFi STA IP

    192.168.1.97

    Support Domoticz/ Home Assistant/ openHAB

    Note:

    Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100
